25-Year 80% Output Efficiency
Home / Solar Panels/

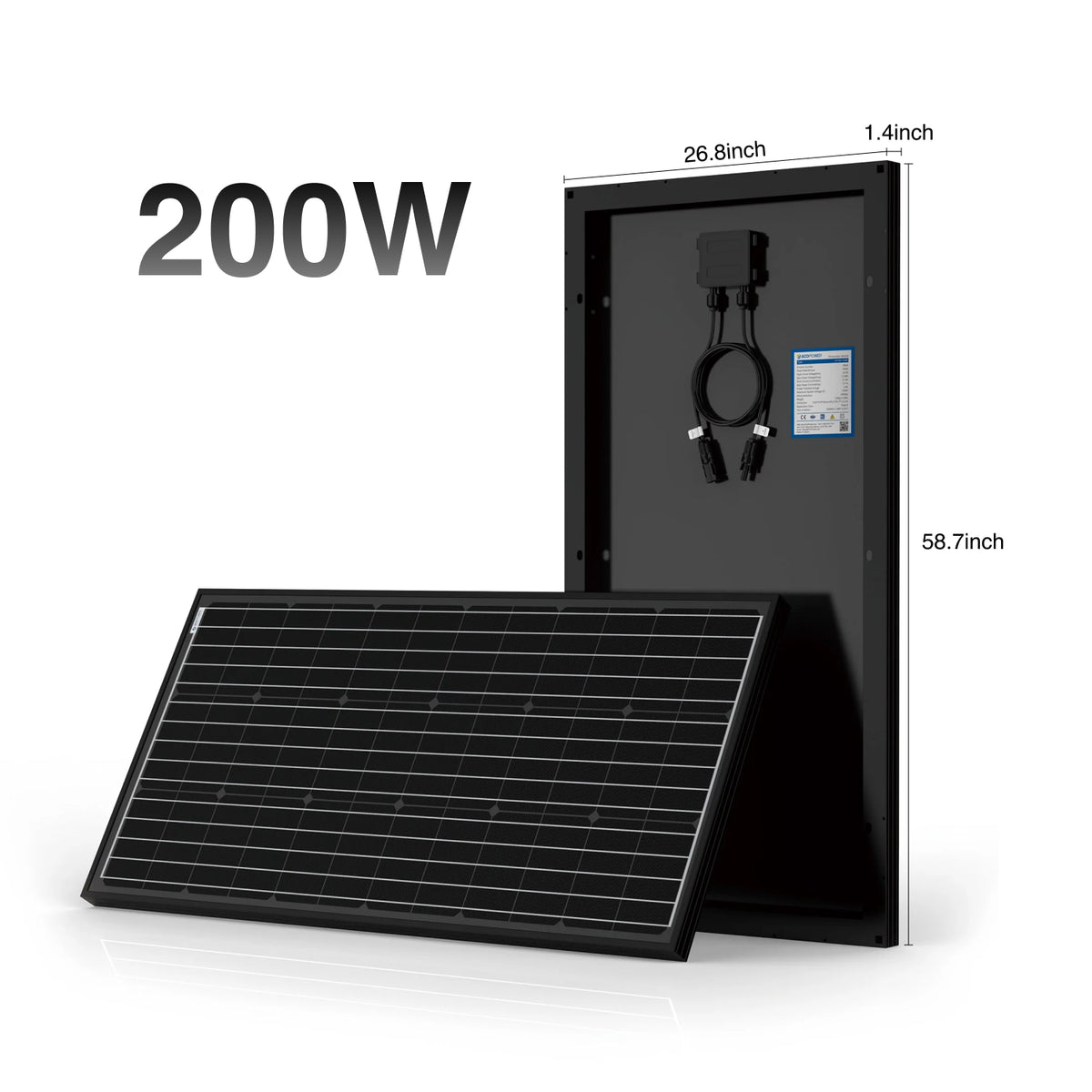

ACOPower 200 vatios 12 voltios monocristalino para bombas de agua, fuente de alimentación residencial
New arrivals
SALE
10.24→10.30
Limited Time Deal
Free Shipping to United States,Canada…
Estimated Dispatch within 2 Business Days
more
Estimated Dispatch within 2 Business Days
Arrive within 2-7 Business Days
*US only. For other regions, click "More"
more
*US only. For other regions, click "More"
Pickup available at Walnut USA
*Usually ready in 24 hours
more
*Usually ready in 24 hours
30-Day Return Policy｜5 Year Warranty Protection
more
Ways To Pay
Don't Miss Top Accessories
-
Precio regular €709,95Precio de venta €709,95 Precio regular
Grade A+ Solar Cell
Proven Reliability and Durable Structure
IP67
Waterproof
Half-Cut PERC Cells
200W
Electricity Output
IP65 Waterproof Junction Box
IP67 Waterproof Solar Panel Connectors
Mounting Hole
Reliable Electricity Output Performance
Get reliable energy with an average of 1000Wh daily, perfect for keeping your appliances running smoothly. Enjoy peace of mind with a positive output tolerance of 0%-3%, ensuring you always get what you need.
- Reliable Power Output
- High-Efficiency Solar Cells
- Consistent Power Output
Ultimate Portability and Durability
The aluminum alloy frame and sturdy stand ensure durability and hassle-free setup. Perfect for RVs, outdoor camping and road trips. Grab the built-in handle and you're ready to go!
Durable and Reliable in Any Weather
Face any weather with confidence. Our solar panels are engineered to handle the toughest environments, ensuring durable and long-lasting use. With over 30 in-house tests, we guarantee exceptional quality and performance for years to come.
Effortless Installation and Portability
Simplify your solar setup with our easy-to-install and handle panels. Perfect for high-end off-grid and mobile applications, they come with pre-drilled holes compatible with ground mounts, Z brackets, pole mounts, and tilt mounts.
Swift 24-Hour Support Response
Our dedicated sales and technical support team is available around the clock to ensure you get a response within 24 hours. We're here to help you with any issues, anytime.
Specification
| 200W Mono Solar Panel | 175W Mono Solar Panel | 100W Mono Solar Panel | |
|---|---|---|---|
| Max Power at STC | 200W | 170W | 100W |
| Short Circuit Current | 11.3A | 10.31A | 5.5A |
| Optimum Operating Current |
10.7A | 9.67A | 5.2A |
| Maximum System Voltage | 600VDC | 600VDC | 600VDC |
| Output Cable | 12 AWG 900 mm (35 in) |
12 AWG 700 mm (27.6 in) |
12AWG 900 mm (35 in) |
| Weight | 11.2 kg (24.7 lb) | 9.2 kg (20.2 lb) | 6.0 kg (13.2 lb) |
| Junction Box | IP65 | IP65 | IP65 |
| Solar Cells Efficiency |
Over 23% | Over 23% | Over 23% |
| Open Circuit Voltage |
22.1V | 21.6V | 22.9V |
| Optimum Operating Voltage |
18.7V | 18.1V | 19.4V |
| Operating Temperature | -40°C ~ +85°C (-40°F to +185°F) |
-40°C ~ +85°C (-40°F to +185°F) |
-40°C ~ +85°C (-40°F to +185°F) |
| Maximum Series Fuse Rating |
15A | 20A | 10A |
| Dimensions | 1496 × 705 × 35 mm
(58.9 × 27.8 × 1.4 in) |
1262 × 699 × 35 mm
(49.7 × 27.5 × 1.4 in) |
1070 × 535 × 35 mm
(42.1 × 21.1 × 1.4 in) |
| Solar Cells | 68 cells (4×17) | 64 cells (4×16) | 36 cells (3×12) |
| Connectors | Solar Connectors | Solar Connectors | Solar Connectors |
| Workmanship Warranty | 10-Year | 10-Year | 10-Year |
| Performance Warranty | 25-Year Power Output Warranty |
25-Year Power Output Warranty |
25-Year Power Output Warranty |
Swipe left
FAQs
User Manual
What do l need to complete my off-grid solar power system?
A solar panel has to be connected a charge controller to requlate current, and a battery to store the electricalpower. You will need adapter kit cables to wire the solar panel(s) and charge controller, and tray cablesconnecting the charge controller to a deep-cycle battery.
What does off-grid and on-grid mean?
On-grid simply means solar power equipment (array or solar panel) is connected to the electrical grid, while off.grid refers to systems that are not connected to the grid and therefore store the generated power for later useOff-grid systems are not affected by grid blackouts.
How should l connect solar panels in my electrical circuit (series vs parallel) ?
Solar panels can be connected in series or in parael to meet your electrical circuit size and power demand. Connecting solar panels inseries willhave the effect of adding up their operating voltage output, while system current output will be the same as that for one panel.While, connecting solar panels in parallel willhave a diferent effect;individual panels operating curent output will add up to be the systemoutput current, while system output voltage will be the same as the output voltage of one solar panel. To meet the optimum power outputand system rating for your power system, you can use both parallel and series connections.
What does the 12V/24V in the product title of the solar panel mean? Why is it different from the value on the label/specifcationsheet of the solar panel?
The 12V/24v in product titles (ex. 150w 12v clGs Solar panel) does not refer to the actual voltage (Voc or vmp) ofthe solar panels, but ratherto the voltage ofthe solar system or energy storage system to which the panel is best suited. The voltage ofthe solar panel must be highei
than the solar system voltage.
