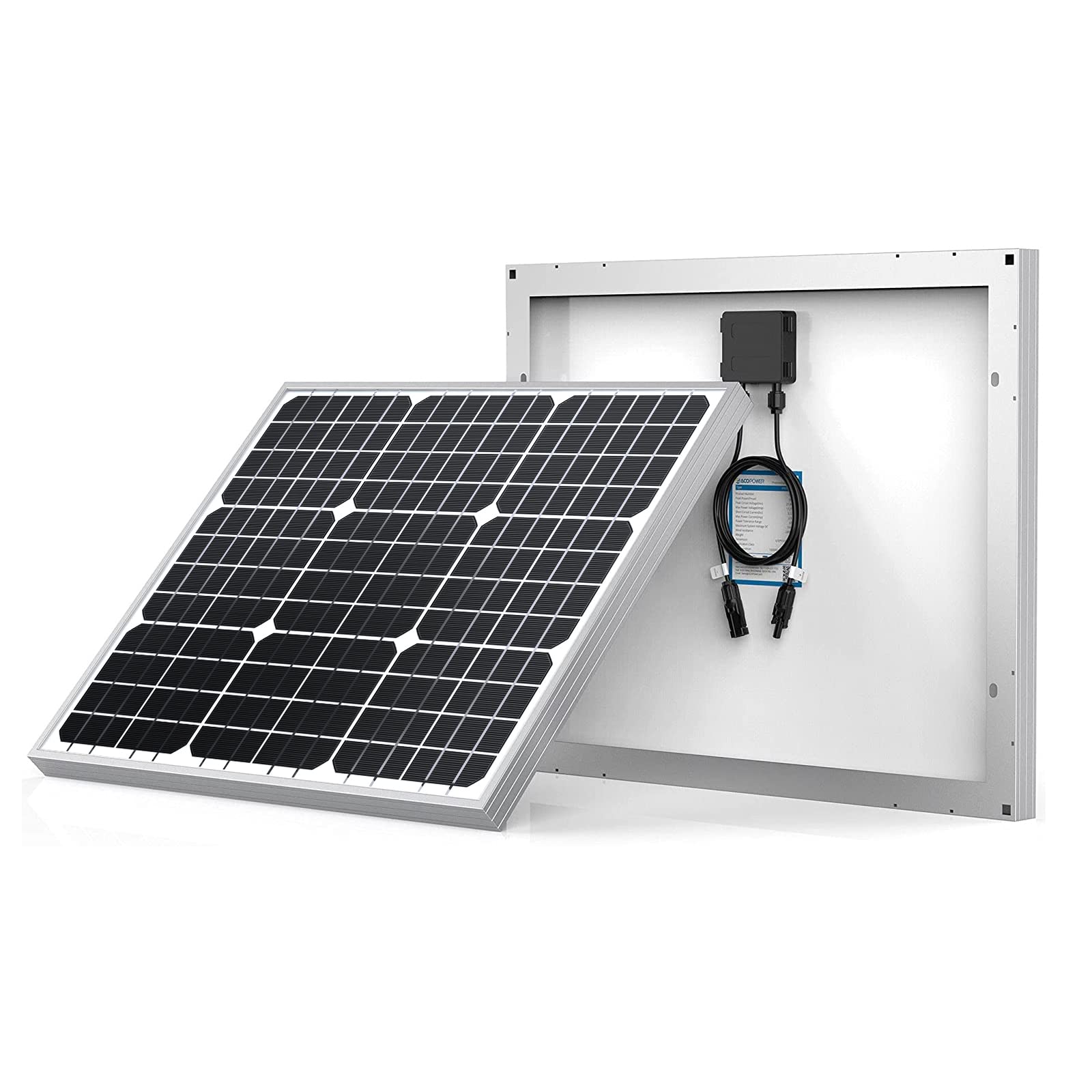

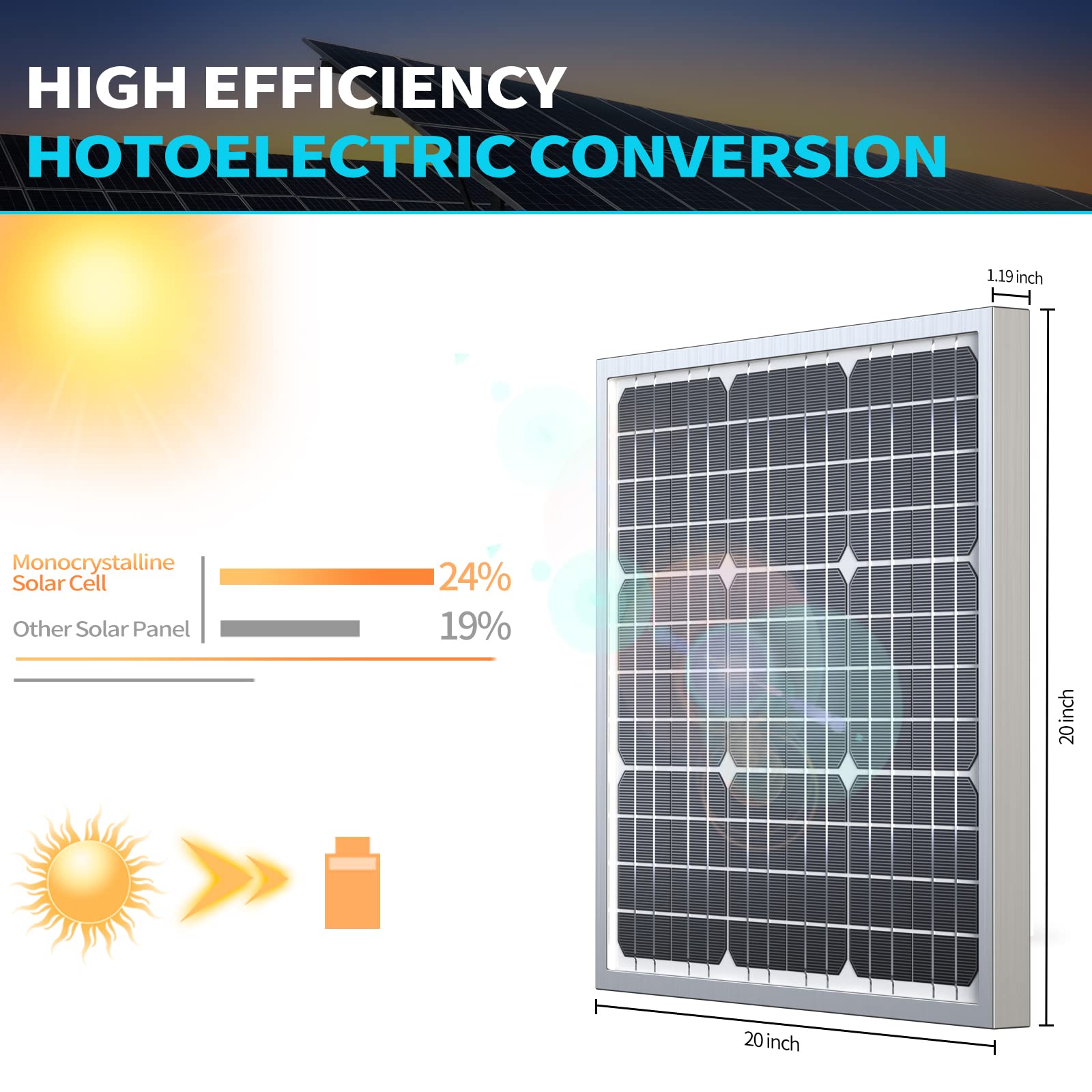

50 Watt 12 Volt Monocrystalline Solar Panel
SKU:
HY050-12M
- €60,95
- €60,95
- Unit price
- per
- High Efficiency – 50W monocrystalline for 12V–48V systems.
- Easy Install – Pre-drilled holes & 12AWG quick connectors.
- Weatherproof – IP65 rated, withstands wind (2400Pa) & snow (5400Pa).
- Reliable Warranty – 5-year material & 20-year output guarantee.
Features
ACOPOWER Small Solar Panel
PRODUCT DETAILS
Specification
| Characteristics | 50W |
| Open-Circuit Voltage(Voc) | 23.3V |
| Optimum Circuit Voltage(Vmp) | 19.8V |
| Short-Circuit Current(Isc) | 2.73A |
| Optimum Circuit Current(Imp) | 2.53A |
| Maximum Power at STC(Pmax) | 50W |
| Module Efficiency | 19.2% |
| Operating Temperature | -40°C ~ +85°C |
| Maximum System Voltage | 1000V DC |
| Power tolerance | ±3% |
| Type of cell | Mono-crystalline 158.75 x 158.75 mm (6 inches) |
| Dimensions | 510x510x30mm (20x20x1.19 in) |
| Weight | 3.1 Kg (6.8 lbs) |
| Workmanship Warranty | 10-Year |
| Performance Warranty | 25-Year Power Output Warranty |
What's in The Box
- Mono Solar Panel
- User Manual
